- Product detail description
-
Material: SUS201,304,304L,316,316L,431,321,410/430,310S,904L, super duplex stainless steel or customized.
Mesh Counts: 2mesh-635mesh
Wire Diameter: ≥0.02mm
Width&Length: 3FTX100FT, 1MX30M, 4FTX100FT, 5FTX100FT or we can customized
Product description: Stainless steel plain woven wire mesh canbe used for filter, sieve, insect screen and serve in electroplating, mining,oil, plastic, fiber, food, medicine industries.Stainless steel Plain Woven Mesh

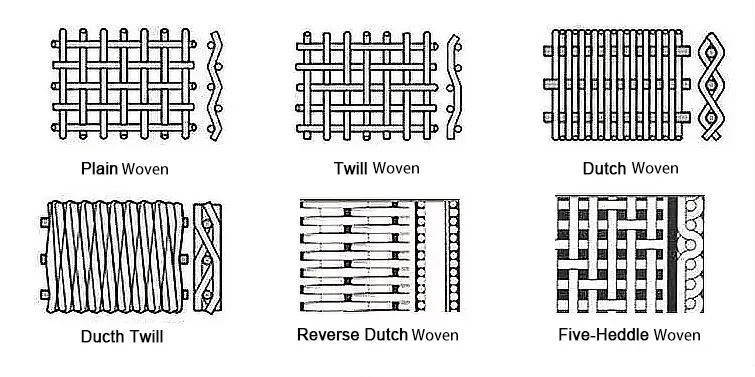

Stainless steel Plain Woven mesh is made of a weft wire and a warp wire with same diameter woven together. lt has excellent resistanceto acid, alkali, high temperature and abrasion.
What is stainless steel Plain Woven Mesh ?
Stainless Steel Plain Woven Mesh is an industrial product made from interlocking metal wires, also named stainless steel woven cloth.stainless steel woven mesh, stainless steel wire netting,ss mesh.
Stainless Steel Plain Woven Mesh is widely used because of its beneficial properties for industrial applications and architecture.Certainly the biggest benefit of woven stainless steels is the high resistance in corrosion. Low-alloy steel can resist corrosion at normal atmospheric conditions where high-alloy steels can resist severe circumstances like, low/high temperatures, high pressures, acids.alkaline solutions and so on.
Stainless Steel Plain Woven Wire Mesh specification
Common Material SUS201,304,304L,316,316L,431,321 stainless steel wire Special Material 410/430,310S,904L stainless steel wire,UNS S31803(S32205)duplex stainless steel wire;UNS S32750
Super duplex stainless steel wireMesh counts 2mesh-635mesh Width 0.914m,1.0m,1.22m,1.5m,1.6m,2m,3m special requirentment can be customized. Length 30m,100ft or cut to length,minimum 2m Stainless Steel Plain Woven Wire Mesh Features
● Corrosion and abrasion resistance.
● High temperature resistance.
● Highly aesthetic appeal for architectural applications.
● Hygienic characteristics and clean ability are specifically suitable for food and pharmaceutical industries.
● Cost effective.
● Highly durable and withstand severe conditions.
● Long life cycle.Stainless Steel Plain Woven Wire Mesh Applications
● Screening and Filtering: Ideal for use in environments with acid or alkali exposure, such as in the chemical industry.
● Oil Industry: Serves as mud mesh in oil production processes.
● Chemical Packing Nets: Used in the chemical industry for packing applications.
● Screen Mesh in Chemical Fiber Industry: Acts as a screen mesh in the production of chemical fibers.
● Electroplating Industry: Utilized as pickling nets in electroplating processes, offering resistance to corrosive substances.Stainless steel Plain Woven Wire Mesh Packing
● High mesh count: lnside with paper tube,Then waterproof paper covered.Finally in a wooden case or pallet.
● Low mesh count: Packed in rolls,Then with waterproof and woven bags.Finally in wooden case.
● Sheet shape: Inside with plastic film and outside with a small wooden case.
Stainless Steel Plain Woven Wire Mesh Mesh Wire Dia. (MM) Opening (MM) Material (AISI) 7mesh×7mesh 1.00 2.63 304 or 316 10mesh×10mesh 0.60 1.94 304 or 316 12mesh×12mesh 0.50 1.62 304 or 316 16mesh×16mesh 0.40 1.19 304 or 316 16mesh×16mesh 0.35 1.24 304 or 316 18mesh×18mesh 0.35 1.06 304 or 316 20mesh×20mesh 0.40 0.87 304 or 316 24mesh×24mesh 0.26 0.80 304 or 316 30mesh×30mesh 0.30 0.55 304 or 316 35mesh×35mesh 0.17 0.56 304 or 316 40mesh×40mesh 0.23 0.40 304 or 316 50mesh×50mesh 0.20 0.31 304 or 316 60mesh×60mesh 0.15 0.27 304 or 316 70mesh×70mesh 0.12 0.24 304 or 316 80mesh×80mesh 0.13 0.19 304 or 316 90mesh×90mesh 0.12 0.16 304 or 316 100mesh×100mesh 0.10 0.15 304 or 316 120mesh×120mesh 0.09 0.12 304 or 316 150mesh×150mesh 0.063 0.11 304 or 316 180mesh×180mesh 0.053 0.09 304 or 316 200mesh×200mesh 0.053 0.07 304 or 316
